Product Introduction
The BECHUR 5 Ton Battery-Powered Trackless Electric Transfer Cart is a heavy-duty in-plant transport vehicle that requires no rail installation and is powered by an onboard battery. Solid rubber wheels allow it to operate on common factory floors such as concrete, epoxy-coated surfaces and steel plates. The vehicle uses a DC battery power system with integrated electrical controls and supports in-place turning, forward and reverse travel, start/stop and speed adjustment. It is primarily used for short-distance handling of heavy workpieces, molds, equipment and materials within factory workshops.
Global Project Experience
Product Features
Strong Floor Adaptability
No embedded rails are required. Solid wear-resistant rubber drive wheels allow operation on ordinary flat floors. Pivot turning supports unrestricted movement across workshop zones and workstations, while factory renovation or layout changes do not require changes to floor infrastructure.
Battery Powered
Built-in large-capacity industrial battery with onboard charging interface. A full charge supports several hours of continuous operation. With no external cable or conductor rail, the cart can move flexibly indoors and outdoors.
Safety Protection
Red emergency-stop button allows one-touch power cut-off in an emergency. Ventilation ducts reduce overheating during continuous operation of electrical controls and drive motors. Reserved lifting rings make maintenance, relocation and hoisting convenient.
Robust Structure
Thickened welded-steel load deck and reinforced frame provide 5-ton rated capacity. The flat deck resists deformation and can carry pallets, fixtures, heavy boxes, molds and other loads. Deck dimensions are customizable.
Simple Control and Stable Travel
Wired pendant and wireless remote control modes are supported (optional). Forward/reverse and speed control are straightforward. Damping and buffering support smooth low-speed starts and stops and help protect precision workpieces. Operators can learn quickly.
Easy Maintenance and Long Service Life
Modular electrical cabinet with organized wiring simplifies troubleshooting. Batteries, motors and travel wheels use standard replaceable components. Corrosion- and wear-resistant coating supports long-term operation in workshop dust and light oil contamination.

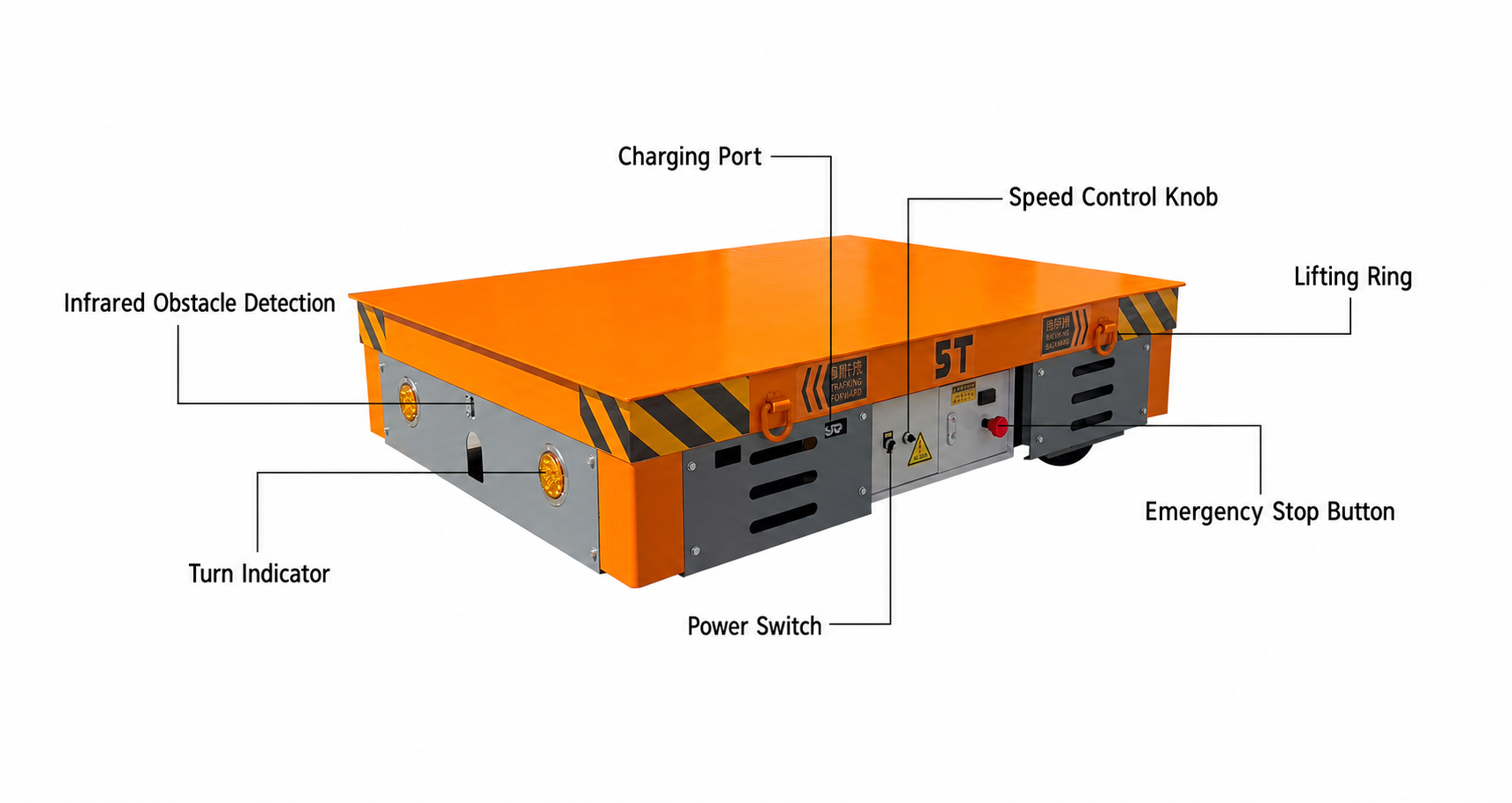

Product Parameters
| Product Type | Battery-Powered Trackless Electric Transfer Cart |
|---|---|
| Rated Capacity | 5 t (other capacities customizable from 1–200 t) |
| Deck Dimensions | Customizable to application requirements |
| Deck Type | Flat / saddle / lifting (custom tooling decks supported) |
| Travel Speed | 0–30 m/min (adjustable) |
| Travel Direction | Forward / reverse / left turn / right turn (omnidirectional travel optional) |
| Control Method | Remote control |
| Safety Devices | Emergency stop + infrared obstacle detection (laser obstacle detection / mechanical safety edge optional) |
| Vehicle Color | Orange (custom colors available) |
| Customization Process | Contact our online sales team or call us with your application requirements; quotation provided based on confirmed parameters. |
Function Demonstration Video
Application Scenarios
Compared with rail-mounted transfer carts, the BECHUR 5 Ton Battery-Powered Trackless Electric Transfer Cart eliminates rail installation costs and floor modification time. Compared with forklifts, its larger deck provides more stable heavy-load handling and does not require a forklift operator license. Independent battery power enables flexible plant-wide movement, while multiple safety protections reduce handling risk. It is a cost-effective solution for 5-ton in-plant material transfer in small and medium-sized factories. Deck length and width, lifting functions, anti-collision alarms and other options can be customized to workshop dimensions and load specifications.
- Machine Shops: Move heavy machine-tool molds, castings, forgings and large components between processes; replace forklifts for heavy workpieces and reduce the risk of collisions with machine tools.
- Mold Manufacturing Plants: Circulate large injection molds and stamping dies between storage, machining and trial-molding areas.
- Steel Structure & Equipment Manufacturing: Short-distance in-plant transport of small steel structures, welded assemblies and auxiliary equipment.
- Warehouses & Internal Logistics: Batch transfer of heavy pallets, metal bins and standard goods between rack areas and staging zones.
- New Energy & Equipment Assembly: Move large units, battery modules and enclosures between assembly stations; cable-free operation suits clean workshops.
- Metallurgy & Foundry Workshops: Move small and medium-sized castings and heat-treated workpieces; trackless travel supports flexible production layout changes.
- Plant Support & Relocation: Move equipment during maintenance and stage large finished products before loading; lifting rings allow the complete cart to be repositioned by crane.
About BECHUR
MANUFACTURER PROFILE
Custom Material Transfer Engineering Since 2009
Kunshan Bechur Crane Electric Co., Ltd. is headquartered in Kunshan, Suzhou, Jiangsu, China and specializes in custom trackless transfer carts, rail-mounted transfer carts and heavy-duty AGV systems for international industrial projects.
- Non-standard engineering from application review through manufacturing and factory testing
- Project documentation, export coordination and lifecycle support for overseas buyers
- Custom capacity, deck, drive, steering, control and safety configurations
